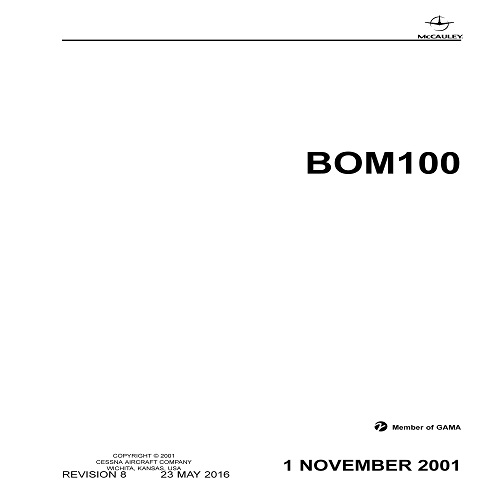

McCauley BOM100 Blade Overhaul Manual
Description
Overhaul Manual
McCauley
McCauley BOM100 Blade
has 311 pages
Original Issue: November 1, 2001
Revision 8: May 23, 2016
contents
Chapter 61: Propellers
GENERAL INFORMATION
INSPECTION PROCEDURES
DISASSEMBLY (THREADED ONLY)
REASSEMBLY (THREADED ONLY)
SPECIAL INSTRUCTIONS
REPAIR AND REPLACEMENT
THREADED BLADE DIMENSIONAL REQUIREMENTS
C200 SERIES CONSTANT SPEED THREADLESS BLADE DIMENSIONAL REQUIREMENTS
C300 SERIES CONSTANT SPEED FULL-FEATHERING THREADLESS BLADE DIMENSIONAL REQUIREMENTS
C400 SERIES CONSTANT SPEED THREADLESS BLADE DIMENSIONAL REQUIREMENTS
500 SERIES CONSTANT SPEED FULL-FEATHERING THREADLESS BLADE DIMENSIONAL REQUIREMENTS
TURBINE BLADE DIMENSIONAL REQUIREMENTS
