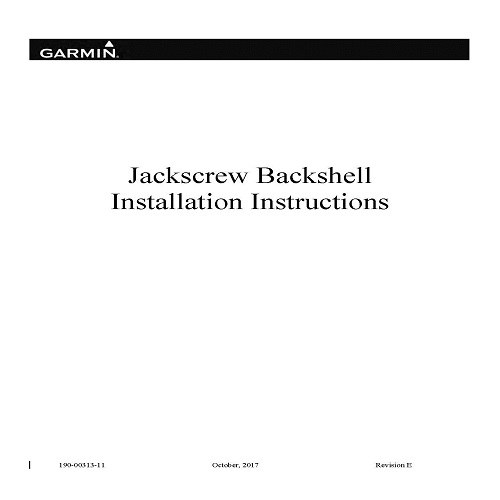

Garmin Jackscrew Backshell Installation Instructions 190-00313-11

$13.95

Available Options:
Version:

190-00313-11

Category: Tags: , , , , ,

Description

Installation Instructions

Garmin

Jackscrew Backshell

has 24 pages

190-00313-11

Revision E: October, 2017

contents

  1. Jackscrew Backshell Installation Parts

  2. Shield Termination Technique – Method A.1 (Standard)

  3. Shield Termination Technique – Method A.2 (Daisy Chain)

  4. Shield Termination – Method B.1 (Quick Term)

  5. Shield Termination – Method B.2 (Daisy Chain – Quick Term)

  6. Daisy Chain between Methods A and B

  7. Double-Shield Termination Technique – Method C.1

  8. Double-Shield Termination Technique (Quick Term) – Method C.2

  9. Sealed D-Sub Gasket Installation Instructions

10.Sealing Plug Installation Instructions

Appendix A: ID Program Pins (Strapping)

Appendix B: Thermocouple (K-type, J-type) Lo Grounding

Appendix C: Splicing Signal Wires
